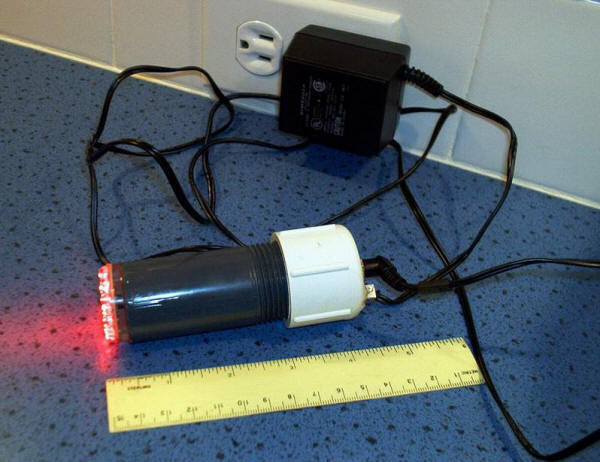

24 LED Phototherapy Light Wand
Walter has designed a 24 LED Light Wand that comes in two models. The simplest design provides un-modulated light which is useful for pain reduction. The more complex design provides switch-selected modulated and un-modulated light. Modulated light is for accelerated healing.
- Parts List and Wiring Diagram for Un-modulated 24 LED Light Wand
- Assembly Instructions for Un-modulated 24 LED Light Wand
- Schematic for Switch-Selected Modulated and Un-modulated 24 LED Light Wand
- Parts List for Modulated 24 LED Light Wand

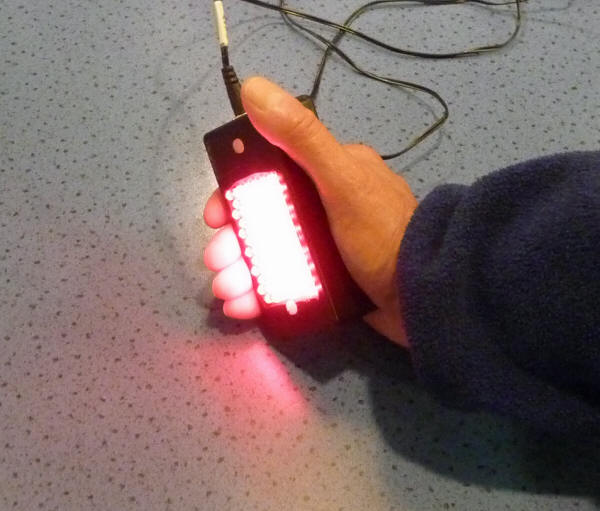

72 LED Phototherapy Hand Held
Walter has also designed a larger flat panel 72 LED device that is excellent for treating larger areas that aren't easily reached with the light wand. This device is designed with un-modulated light.
These devices were designed for research purposes only. Walter makes no claims as to its efficacy and no recommendations regarding its use.
