Un-modulated 24 LED Phototherapy Light Wand Parts List and Wiring Diagram

Parts List

1 Each LED module DIGI-KEY 67-1589-ND $5.43
1 Each 91 ohm, 1W, 5% resistor Mouser 294-91 $0.05
1 Each 14VDC, 360ma Power Supply All Electronics DCTX-1436 $3.50
1 Each DC Jack 5.5/2.5 Radio Shack 2741576 $1.69
1 Each printed circuit board Radio Shack 276-150 $1.19
1 Each 1”x6” SCH 80 Nipple Local plumbing store $1.09
1 Each 1” PVC T Cap Local plumbing store $1.62
Miscellaneous: #22 AWG hookup wire, Solder, Epoxy

Wiring Diagram

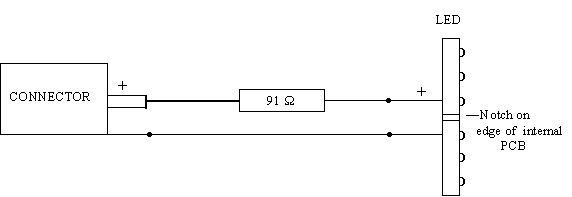

24 LED Wiring Diagram


These devices were designed for research purposes only. Walter makes no claims as to its efficacy and no recommendations regarding its use.
